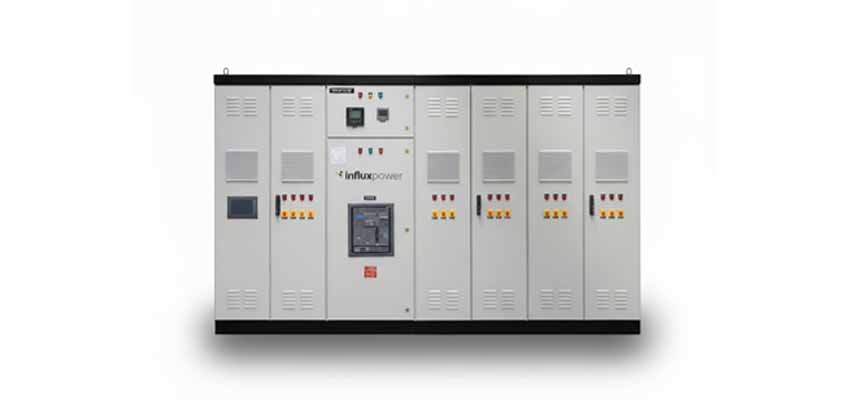

Hybrid RTPFC Panel

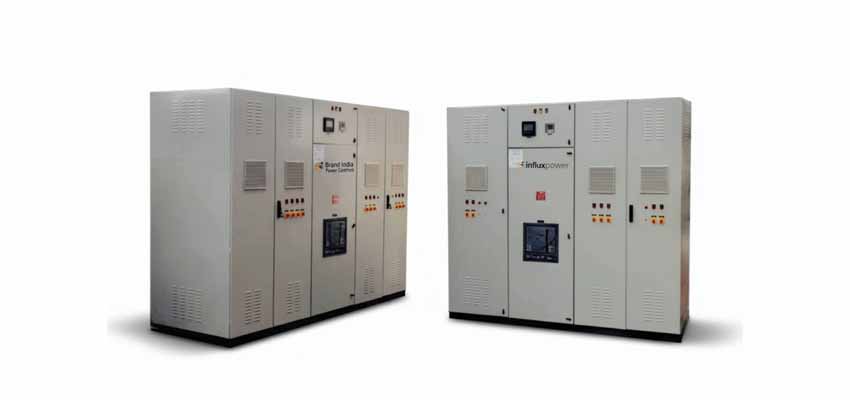

Hybrid RTPFC Panel
Thyristor switch with SVG/APF Real time PFC System
Hybrid RPFC system is a combination of thyristor switch RTPFC and IGBT fired APF or SVG offers most viable and economical solution for both Power Factor Compensation and Harmonic Mitigation.
-
Ultra fast compensation of reactive power
-
Real time correction of power factor in micro seconds
-
No over or under compensation by stepless SVG
-
Harmonic Immunity through series reactors and AHF
-
Less Maintenance, Long life, great payback
The designs offered by us are installed for compensation and Harmonic compliance of main transformer or at major load feeders. Though there are standard ratings but any design can be offered as per customer load characteristics and level of harmonic distortion.
Rating (Thyristorised RTPFC system + SVG/AHF )
-
Ultra fast compensation of reactive power
-
100 KVAR + 30A
-
200 KVAR + 50A
-
300 KVAR + 50/100A
-
400 KVAR + 50/100A
-
500 KVAR + 100/200A
Technical Specifications
| Range | 100kvar to 2000kvar (Above master-slave combination) |
|---|---|
| Rated Voltage | 400V to 440V, 3Ph, 50/60Hz |
| Step Size | SVG - Stepless, Capacitor section - Min 10kvar |
| Switching Device | Solid state SVG/APF and Thyristor switch of 2200V PIV |
| Capacitor | MPP type Gas / Oil filled self-healing |
| Detuning Reactor | 7% / 14%, Copper / Aluminium wound, High linearity, H class insulation |
| Response Time | 15 milli Sec |
| Frequency | 50 / 60Hz |
| Ambient Temperature | 40°C max |
| Protection Degree | IP 42 |
| Installation | Indoor, free floor standing |
