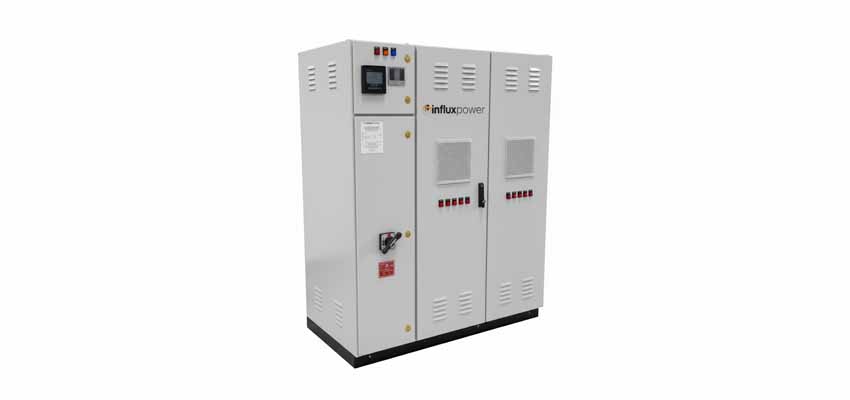

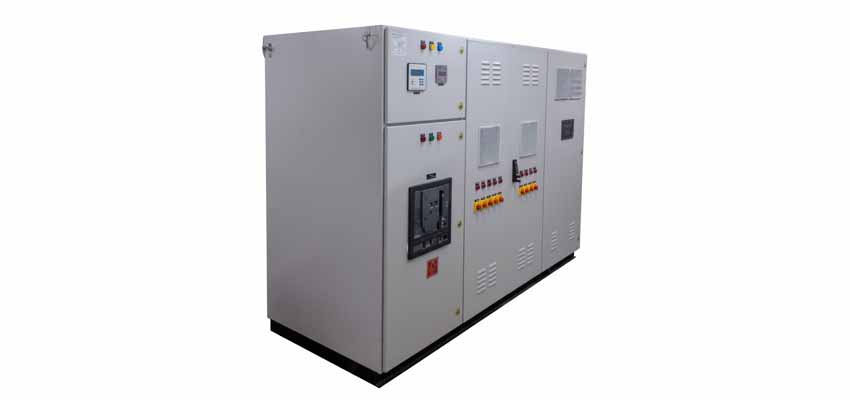

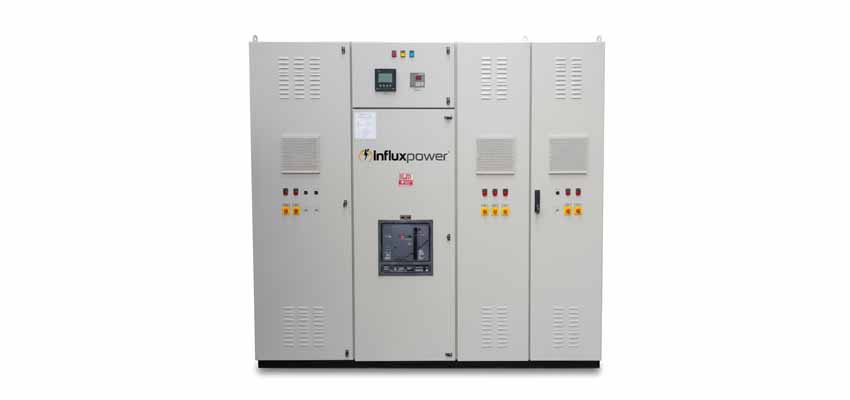

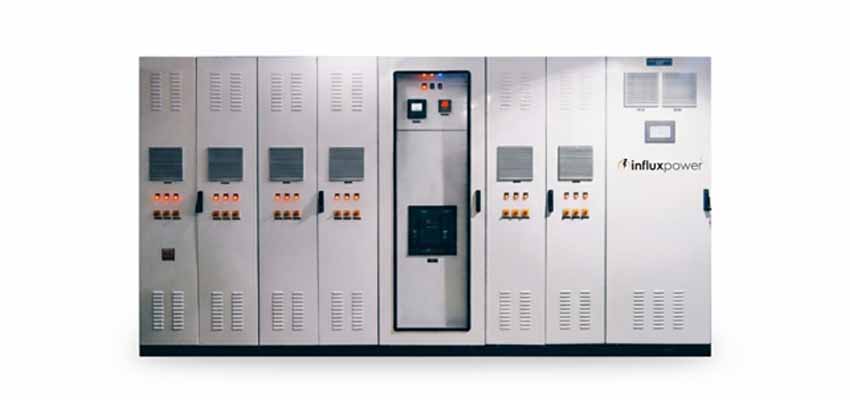

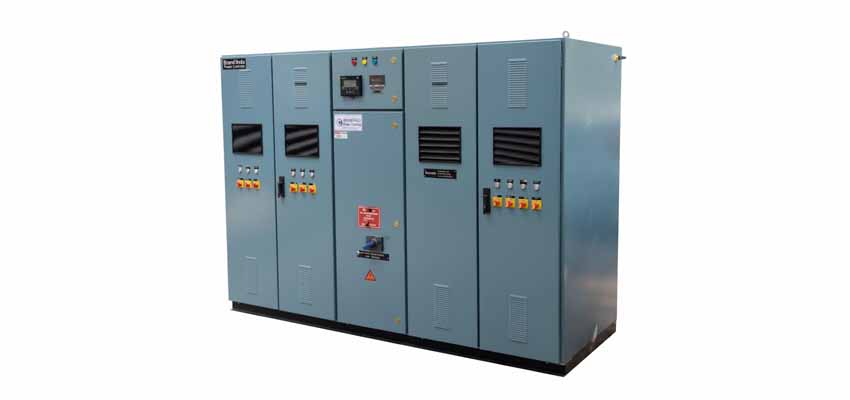

RTPFC Panel

Thyristor Switched Real Time Power Factor Correction System

Influx Power’s Thyristorised switch RTPFC system is the most powerful automatic capacitor bank that provides the ideal power factor correction solution for industrial and commercial applications.

• Compensate the reactive power on real-time basis for extremely rapid acquisition of the power factor within few milliseconds.

• Connection and disconnection of the capacitor to and from the network occurs at zero crossing through thyristor switches.

• This smooth connection avoids transient effects like waveform distortions, generation of switching spikes, etc., typically created by electromechanically switched contactor-based systems.

• The response time of this is much higher than electromechanically switched systems.

• Harmonic immunity through appropriate detuned, high linearity, and low losses harmonic blocking series reactors.

• Less maintenance, longer life.

• Application: Welding machines, rolling mills, cranes, elevators, press machines, molding, etc.

Benefits of Real-Time High-Speed PFC Against Conventional PFC

• Almost Unity Power Factor – Guaranteed maximum PF incentive

• Reduced in KVA demand – Higher saving in demand charges

• Reduced peak demand charges - higher savings

• Optimum capacity utilization of electrical infrastructure

• Maintenance-free system as it uses solid-state switch (TSM) for capacitor switching

• Ultra-fast compensation - effective with fast fluctuating load

• Improved voltage profile

Technical Specifications
