Power Factor Correction Service
Power Factor Correction Service Providers in Pune | Power Factor Correction Panel Manufacturers in Pune
Power Factor Correction Panel Manufacturers, Suppliers in Pune | Power Factor Correction Panel in Pune
If you're looking for Power Factor Correction Service Providers in Pune or need reliable Power Factor Correction Panel Manufacturers in Pune, you're in the right place. In today's energy-driven world, businesses rely on effective power usage to save energy costs and maintain efficient operations. Power Factor Correction (PFC) plays a critical role in improving energy efficiency and lowering energy bills. This service helps industries optimize their electrical consumption by minimizing wasted power, making Power Factor Correction Panel Services essential for smooth, cost-effective operations.
What is a Power Factor Correction?
Most industrial and commercial premises having 3 phase electrical connection have inductive loads (Reactive power) such as electric motors, fluorescent lighting, ventilation, refrigeration, air conditioning etc. They distort the power supply
making it inefficient. POWER FACTOR is the measure of this inefficiency and is the difference between actual power (kW) and apparent power (kVA), which the equipment actually uses. POWER FACTOR charge on your electricity bill is directly targeted against those consumers who do not demonstrate clear energy efficiency use. You will find this charge itemized on your electricity bill or charge consumers a higher electricity bill in the form of units when the power factor get low. The Power Factor charges can be made significantly smaller by the introduction of Power Factor Correction Capacitors which are a widely recognized method of reducing an electrical load and minimizing wasted energy, improving the efficiency of a plant and reducing the electricity bill. PFC works by improving the PF bringing it closer to 1 (unity). A cost-effective solution can be achieved by increasing your power factor to greater than 0.99 A full site survey is required to determine what type and size of system is required to meet your current and future needs. INFLUX POWER will carry out the survey, including harmonic analysis, and the cost of the survey can be remitted against the cost of the equipment purchased. Once in place, the cost of PFC can often be recovered in less than 1 year.
What is a Power Factor?

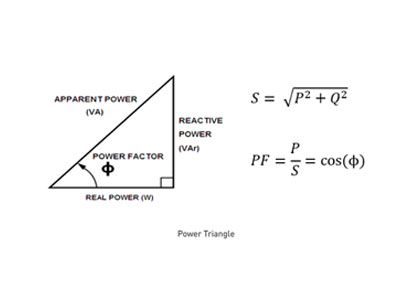

Power factor is an expression of energy efficiency. It is usually expressed as a percentage—and the lower the percentage, the less efficient power usage is. Power Factor (PF) is the ratio of working power (Real /Active power) , measured in kilowatts (kW), to apparent power, measured in kilovolt amperes (kVA). Apparent power, also known as demand, measures the amount of power used to run machinery and equipment during a certain period. It is found by multiplying voltage (V) by current (A). The result is expressed as kVA units.
POWER FACTOR (PF) = KW / KVA
How to Make Sense of Power Factor?

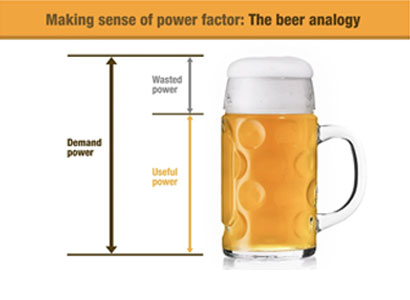

Understanding power factor can be a complex concept, but it can be simplified with a relatable analogy. Imagine a glass of beer. In this analogy, different parts of the beer and the glass represent different types of power in an electrical system. Beer is active power (kW) — the liquid beer is useful power. This is the energy doing the work, which is the part you want. Foam is reactive power (kVAR) — the foam is wasted power or lost power. It’s the energy being produced that isn't doing any work (such as heat or vibrations). The mug is apparent power (kVA) — the mug is the demand power, or the power being delivered by the utility.
Here’s an example: A factory operation runs at 100 kW (Working Power) and the Apparent Power meter records 125 kVA. To find the PF, divide 100 kW by 125 kVA to yield a PF of 0.8 or 80%. This means that only 80% of the incoming current does useful work and 20% is wasted through heating up the conductors
Advantage of Power Factor Correction
- Lower the electricity costs
- Increase KVA capacity (Increase the KW used for same KVA)
- Improve voltage regulation
- Reduction of I2R Losses in transformers and distribution equipment
- ize reduction in cables, transformers and switchgear
- Expansion without additional electrical improvement
- Allows motors to run more efficiently and cooler, improves their life and operation
- Environmental benefit. Reduction of power consumption due to improved energy efficiency. Reduced power consumption means less greenhouse gas emissions and fossil fuel depletion by power station

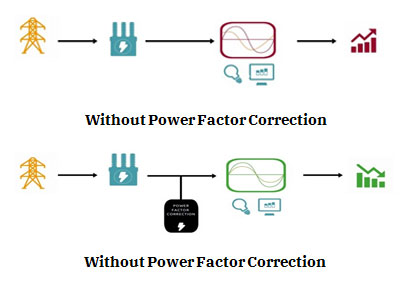

How to improve Power Factor
Power factor correction is achieved by installing a capacitor parallel with the motor or equipment And can be applied at distribution board.

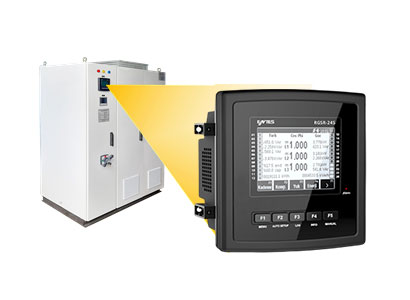

Installing a suitable PFC system parallel to the main distribution board at the origin is the most common method of power factor correction, called centralized reactive power compensation. A controller monitoring the reactive power (kvar) and switches capacitors in or out to maintain the power factor close to unity or to the set value.
The power factor in a industry can found in two types as per reactive power behavior of equipment.
- 1. Lagging power factor : This phenomenon occurs when reactive power is purely inductive i.e the current in the circuit lags behind the voltage
- 2. Leading power factor: This phenomenon occurs when reactive power is purely capacitive. i.e the current in the circuit ahead of the voltage.
Influx Power carries a full site survey to determine what type of power factor, and what type and size of PFC system required for power factor improvement
Influx power offers advanced PFC system for all type commercial and industrial loads.
- 1. RTPFC Panel
- 2. Hybrid RTPFC Panel
- 3. Detuned APFC panel
- 4. Static VAR Generator
- 5. Thyristor switch modules
How to Get Started with Power Factor Correction Panel in Pune
The process of installing a Power Factor Correction Panel in Pune typically starts with a power audit of your facility to determine your current power factor and energy usage. Based on this assessment, Power Factor Correction Panel Suppliers in Pune will suggest the best solution for your business. Once installed, these panels require periodic maintenance to ensure they continue operating efficiently. Many Power Factor Correction Panel Service Providers in Pune offer packages that include both installation and maintenance services to keep your operations running smoothly.
With the growing demand for energy efficiency, Power Factor Correction Service Providers in Pune and Power Factor Correction Panel Manufacturers in Pune are playing a crucial role in helping businesses optimize their energy consumption. Power Factor Correction Panels, especially APFC panels, are valuable tools for companies looking to reduce energy costs, enhance operational efficiency, and avoid utility penalties. By working with an experienced Power Factor Correction Panel Service Provider in Pune, businesses can ensure they receive quality equipment, reliable installation, and dedicated support for all their power factor correction needs.
