Thyristor Switch Module

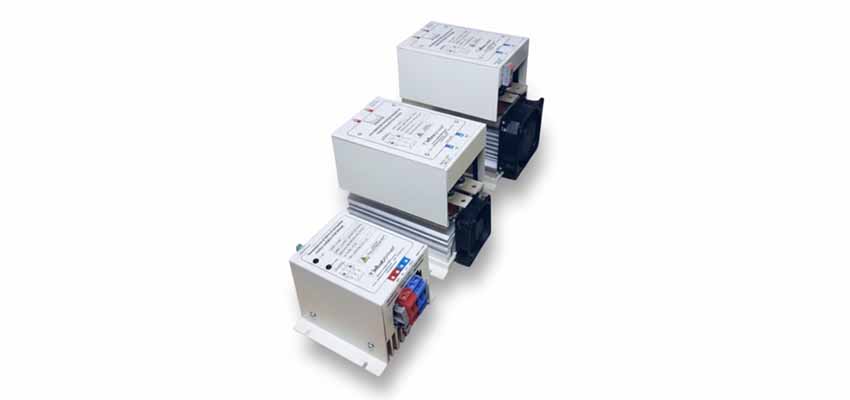

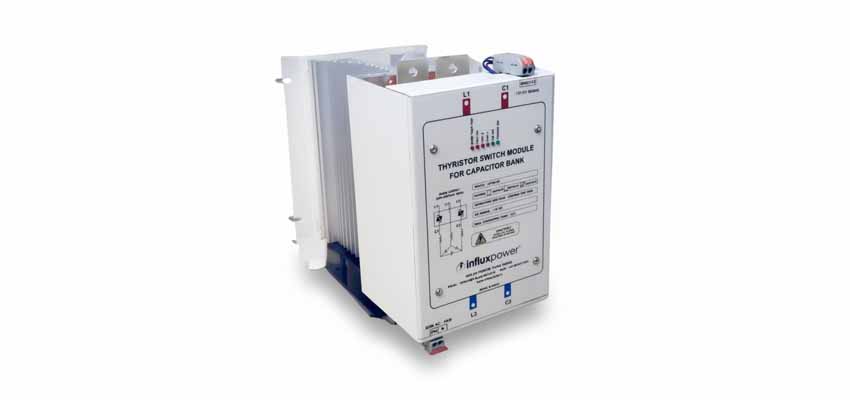

Influx power offers thyristor switch module specially designed for fast switching capacitor bank panel (RTPFC) i.e. real time power factor correction system.

In the RTPFC panel, connection and disconnection of capacitors occures in just few milli seconds through these thyristor switch modules , leads to power factor correction in real time.

These thyristor switch module (IPTM) are very easy to install and come with built in indications for normal operation and faults and built in protections.

• Rating : 10kvar, 25kvar, 50kvar, 100kvar

• Operating Voltage : 440V / 600V/ 690V 3Phase

• PIV Voltage : 1800V / 2200V

• Triggering : 12V / 24V DC

• Max operating Voltage : 50 DegreeC

• Indication : Power ON, Thyristor ON, Over temp trip

• Protections : Over temp, over voltage, external fuse for short circuit

Features

• Due to solid state operation, no arcing, no sparking and no switching noise produced.

• Transients free switching of capacitor because of zero cross over switching technique.

• Response time is very fast, switching of capacitor with few milli second rate.

• No limitation on switching operation, long life service.

• There is no wear and tear over a period, maintenance free.

• Copper busbar for easy of connection.

Technical Specifications
