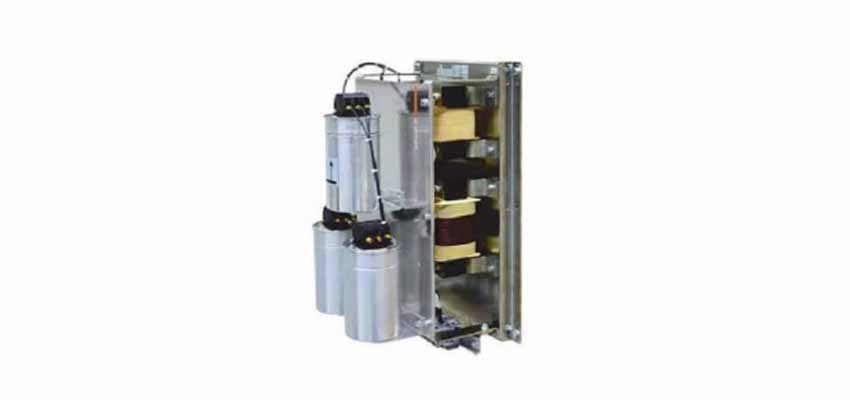

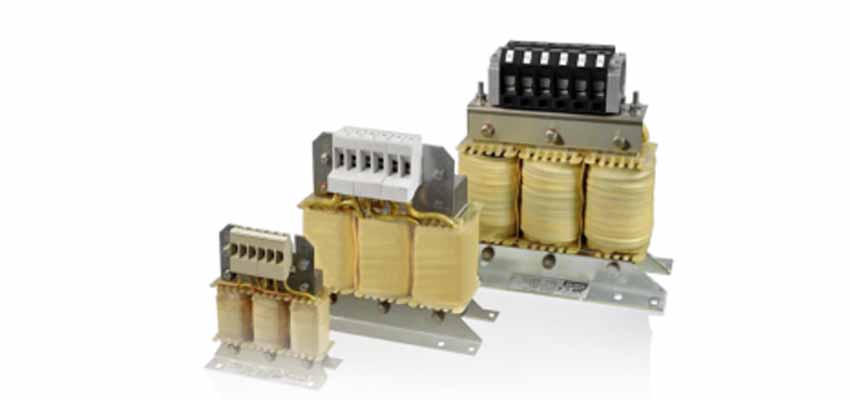

VFD Harmonic Filter

Influx Power's Harmonic Filter for Vfd's Are Simple and Effective Way to Control Harmonics Generated by Vfd's at The Source Point. The Filter Design Typically Reduces Current Harmonic Distortion (Thd-i) To Less Than 5% At Full Load.

These Filters Offer Much Superior Performance Over Other Filtering Methods Including 12 Pulse / 18 Pulse Harmonic Reduction Techniques. It Offers Isolation to Vfd So as To Protect It from High Harmonic Distortion from Supply Side. It Improves the Uptime of Vfd Manifold Thus Increasing Vfd Operational Reliability in Critical & Process Application.

Reduce Thd-(I) And Thd (V) To Help Ieee-519 Requirements Thd-i Of 8% Max At 50% Load, 5% Max at Full Load Saves Energy by Eliminating the Wasted Energy Associated with Harmonics, Therefore Reducing the True Rms Kva demanded from Utility Power Source. Increase Vfd's Reliability by Absorbing Transients and Voltage Resulting in Increased Uptime of Vfd. Increases Equipment's Life by Reducing Heat Associated with Harmonic Currents

Improves Power Factor of Network.
