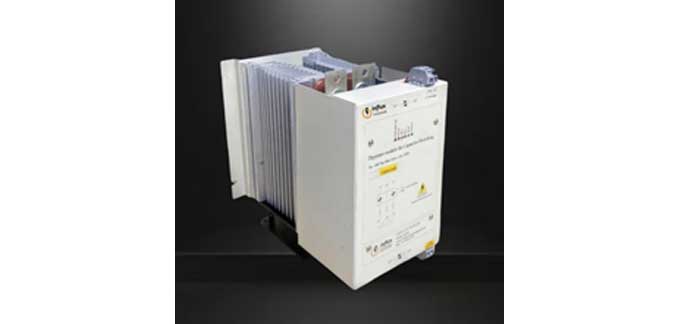

Thyristor Switching Modules (TSM)

Thyristor Switching Modules (TSM)

Thyristor Switching Modules (TSM) are for Fast Real Time Switching of Power Factor Correction Capacitors. The use of thyristors instead of the classic contactors make them ideal in installations with fast and large load fluctuations.

The TSM can connect disconnect capacitors in just milliseconds. Zero cross over trigger gives transient free switching of capacitorsMaximum Operating voltage :Maintenance free, Long service life

• Maximum Operating voltage : 440V , 3PH 50/60Hz

• Rating Available : 5kvar,10kvar,20kvar, 25kvar,50kvar

• PIV : 1800V (2200V on request)

• Triggering : 12V DC

• Maximum ambient temperature : 45°C

• Display : Power ON, Capacitor bank firing, Over temperature trip
